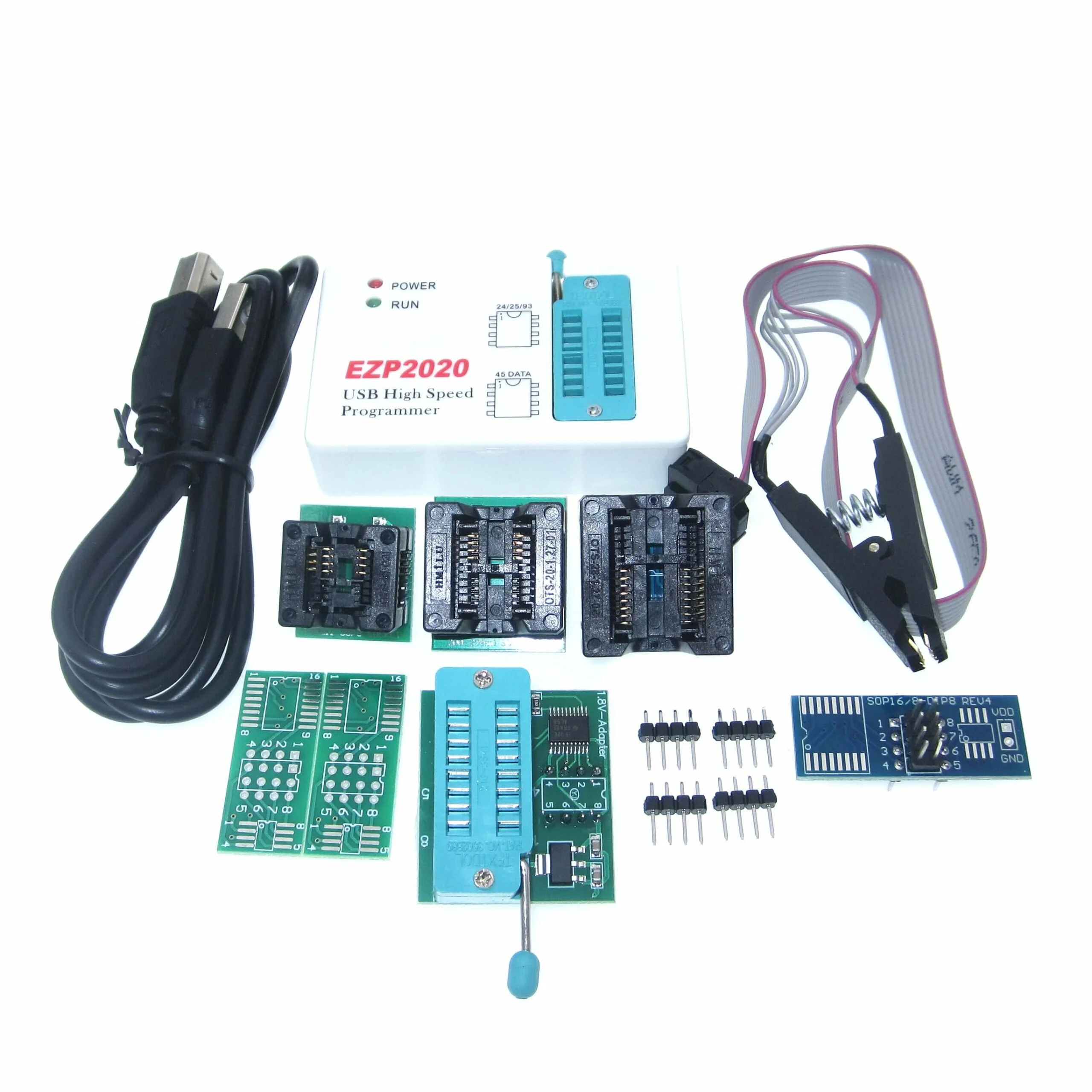

پروگرامر EEPROM پورت USB مدل EZP2020

پروگرامر EEPROM پورت USB مدل EZP2020 یک پروگرامر همه کاره برای برنامه ریزی انواع FLASH و EEPROM مورد استفاده قرار میگیرد. پروگرامر EZP2020 دارای انواع هدر برد ، آداپتور و بردهای مختلف می باشد که میتوانید انواع سری آی سی های SMD را پروگرام نمود.

این پروگرامر علاوه بر پرگرام نمودن انواع EEPROM های موجود در بازار قابلیت پروگرام نمودن انواع میکروکنترلر و تراشه های خاص را داشته که توجه شما را به لیست تراشه های قابل برنامه ریزی توسط این پروگرامر در پایان توضیحات جلب می نمایم.
وجود سوکت های مختلف بر روی برد، شما را از بسیاری بردهای مبدل جهت تراشه های مختلف بی نیاز نموده و توسط برنامه بسیار ساده این پروگرامر می توانید در کمترین زمان ممکن انواع تراشه ها را پروگرام نمایید.

پروگرامر EEPROM مدل EZP2020 قابلیت پروگرام کردن چه مدلهایی را دارد :

• Support 24 series EEPROM, 25 series SPI flash, 93 series EEPROM, 25 series EEPROM, 95 series EEPROM, 45datd flash chips
  2. Support 25 EEPROM series chips;
  3. Support 25 series 1.8V chip (1.8V adapter is required)
  4. Support serial number burning;
  5. Support file merging

مشخصات پروگرامر EEPROM مدل EZP2020 :

USB 2.0 interface, speed up to 12 MBPS.
Read and write speed is super fast, read EN25T80 as long as three seconds, write EN25T80 only in 9 seconds, the fastest is currently on the market the BIOS chip programmer.
The automatic identification of chip.
Automatically detect whether chip.
Automatic selection chip power supply voltage.
Automatic offline copy.
Support the PC software and programming device firmware upgrade.
To fully support 25 FLASH block, block 24 EEPROM, 25 EEPROM memory chips, block 93 EEPROM, etc.
Appearance is compact, easy to carry, and ordinary card about the size.
Package Contents:
1* programmer host
1* high speed shielded USB communication cable
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

انواع آی سی هایی که میتوان توسط پروگرامر EEPROM مدل EZP2020 برنامه ریزی نمود :



****************** 25 SPI FLASH ********************** **************

AMIC:
A25L05PU, A25L05PT,A25L10PT,A25L05PU,A25L20PT,A25L512, A25L010,
A25L10P, A25L020, A25L20P, A25L040, A25L40P, A25L080, A25L80P, A32L016,A22L016 a25LQ32A

ATMEL:
AT25F512, AT25F512A, AT25F512B, AT25F1024, AT25F1024A, AT25FS010,
AT25DF021, AT25F2048, AT25DF041A, AT25F4096, AT25FS040, AT26F004, AT26DF081A,
AT25DF161, AT26DF161, AT26DF161A, AT25DF321, AT25DF321A, AT26DF321

EON:
EN25F05, EN25LF05, EN25P05, EN25D10, EN25F10, EN25LF10, EN25P10, EN25D20, EN25B05,EN25B05T,
EN25F20, EN25LF20 , EN25D40, EN25F40, EN25LF40, EN25D80, EN25F80, EN25Q80, EN25T80,EN25T80,
EN25B16, EN25B16T, EN25D16, EN25F16, EN25Q16, EN25T16, EN25B32, EN25B32T, EN25F32,EN25QH16,
EN25P32, EN25Q32, EN25B64, EN25B64T, EN25F64, EN25P64, EN25Q64 , EN25F128, EN25Q128

ES:
ES25P80, ES25P16,

ESMT:
F25L004A, F25L04UA, F25L008A, F25L08PA, F25L016A, F25L16PA, F25L32PA, F25L32QA,F25L32QA

MXIC:
MX25L512, MX25V512, MX25L1005, MX25L2005, MX25L4005A, MX25V4005, MX25L8005,
MX25V8005, MX25L1605D, MX25L1635D, MX25L3205D, MX25L3225D, MX25L3235D, MX25L3237D, MX25L6405D, MX25L12805D
KH25L4006E,KH25L8006E, KH25L80036, KH25L1606E, MX25V1005, MX25U4035, MX25V4035,MX25V8035,MX25U8935,
MX25L8006E ,MX25L1606E,MX25L1635D, MX25L1633E,MX25L1635D, MX25L1608D, MX25L1608E, MX25U1635E,MX25L3225D
MX25L3237D,MX25L3236D,MX25L3206E, MX25L3235D,MX25U3235F, MX25U3235E, MX25L3208D,MX25L3208E,MX25L6455E,
MX25L6465E,MX25L6408D,MX25L6408E,MX25L6406E,MX25L6445E,MX25L6436E,MX25L12835E,MX25L12835F, MX25U12835F,
MX25L12845E,MX25L12836E,MX25L12865E,MX25L12855E,MX25L25635E,MX25L25635F,MX25L25639F,MX25L25735E,
MX25U25635F,MX25L25735F,MX66U51235F,MX66L51235F,MX25U5121E (1,8 V),MX25U1001E (1,8 V),MX25U2032E (1,8 V)

NEXFLASH:
NX25P10, NX25P20, NX25P40, NX25P80, NX25P16, NX25P32

PMC:
PM25LV512A, PM25LV010A, PM25LV020, PM25LV040, PM25LV080B

SAIFUN:
SA25F005,SA25F010, SA25F020, SA25F040, SA25F080, SA25F160, SA25F320

SPANSION:
S25FL001,S25FL002,S25FL004A, S25FL008A, S25FL016A, S25FL032A, S25FL064A,S25FL0128

SST:EEPROM
SST25VF512, SST25VF512A, SST25VF010, SST25VF010A,
SST25VF020, SST25VF020A , SST25VF040, SST25VF040A, SST25VF040B, SST25VF080B,
SST25VF016B, SST25VF032B, SST25VF064C

GIGADEVICE:
GD25Q512,GD25Q10,GD25Q20B,GD25Q21B,GD25Q40B,GD25Q41B,GD25LQ40,GD25F40,GD25F80,
GD25Q80,GD25Q16,GD25Q32B,GD25Q64,GD25Q128,GD25Q256,GD25Q256MC,GD25LQ05B (1.8V),
GD25LQ10B (1.8V),GD25LQ20B (1.8V),GD25LQ80B (1.8V),GD25LQ16 (1.8V) 8v),GD25LQ32(1.8v),
GD25LQ64(1.8v)

ST:
M25P05A, M25P10A, M25PE10, M25P20, M25PE20, M25P40, M25PE40, M25P80,
M25PE80, M25PX80, M25P16, M25PE16, M25PX16, M25PX16, M25PX16 , M25P64, M25PX64, M25P128

WINBOND:
W25X10, W25X10A, W25X10AL, W25X10L, W25P20, W25X20,
W25X20A, W25X20AL, W25X20L, W25P40, W25X40, W25X40A, W25X40AL, W25X40L,
W25P80, W25X80, W25X80A, W25X80AL, W25X80L, W25P16, W25X16, W25P32, W25X32, W25X64
W25Q40,W25Q80,W25Q16,W25Q32,W25Q64,W25Q128,W25Q64FV,W25Q64FW,W25Q256,
W25P80,W25P16,W25P32,W25P64,W25P80,W25P16,W25P32,W25P64,W25Q05CL,W25Q10CL,
W25Q10EW(1.8V),W25Q20CL,W25Q20BW(1.8V),W25Q40BW(1.8V), w25Q80EW(1.8V),
W25Q16DW(1.8V),W25Q32DW(1.8V), W25Q64FW (1,8 V), w25Q128FW (1,8 V),W25Q256FW (1,8 V)

BERGMicro:
BG25Q512A,BG25Q10A,BG25Q20A,BG25Q40A,BG25Q80A,BG25Q16A,BG25Q32A,BG25Q64A,BG25Q128A

BoyaMicro:
BY25D05AS,BY25D10AS,BY25D20AS, BY25D40AS,BY25D80AS,BY25D16AS,BY25D32AS,BY25D64AS,BY25D128AS,
BY25Q40AL(1.8V),BY25Q80AL(1.8V),BY25Q16AL(1.8V),BY25Q32AL(1.8V),BY25Q64AL(1.8V) ),BY25Q128AL (1.8V)

EXCELSEMI:
ES25M40A,ES25M80A,ES25M16A

FIDELIX:EEPROM
FM25Q04A,FM25Q08A,FM25Q16A,FM25Q32A,FM25Q64A,FM25M04A (1.8V),FM25M08A (1.8V),FM25M16A (1.8V ),
FM25M32A(1.8V),FM25M64A(1.8V),FM25M4AA(1.8V)

PCT:
PCT25VF512A,PCT25VF010A,PCT25VF020A,PCT25VF040A,PCT25VF080A

CHINGIS:
PM25LQ512,PM25LQ010,PM25LQ020,PM25LQ040,PM25LQ080,PM25LQ016,PM25LQ032

SANYO:
LE25FW406M,LE25FW406M

XTXtect:
PN25F04A,PN25F04C,PN25F08,PN25F08B

FIDELIX:
FM25Q04A,FM25Q08A,FM25Q16A,FM25Q32A,FM25Q64A

ZBITSemi :
ZB25D40,ZB25D80,ZB25D16,ZB25LQ40 (1.8V),ZB25VQ20,ZB25VQ40,ZB25VQ80,ZB25VQ16,ZB25VQ32,ZB25VQ64,
ZB25VQ128

******************** 24 * ****************************************

ATMEL: EEPROM
AT24C01, AT24C01A, AT24C01B, AT24C02, AT24C02A, AT24C02B, AT24C04, AT24C04A,
AT24C04B, AT24C08, AT24C08A, AT24C08B, AT24C16, AT24C16A, AT24C16B, AT24C32, AT24C32A,
AT24C32B, AT24C64, AT24C64A, AT24C64B, AT24C128, AT24C128A, AT24C128B, AT24C256, AT24C256A,
AT24C256B, AT24C512, AT24C512A, AT24C512B, AT24C1024, AT24C1024A, AT24C1024B GEMEINSAME

:
24C01,24C02,24C08,24C16,24C32,24C64,24C128,24C256,24C512 ,24C1024

MICROCHIP:EEPROM
24C01,24C02,24C08,24C16,24C32,24C64,24C128,24C256,24C512,24C1024

ST:
M24C01,M24C01R,M24C01W,M24C02,M24C02W,M24C02R,M24C08,M24C08R,M24C08W,M24C16, m24C16R, M24C16W,
M24C32 ,M24C32W,M24C64,M24C64W,M24C128,M24C128B,M24C256,M24C256A,M24C256B,M24C256W,ST24C01,
ST24C02,ST24C04,ST24C08,ST24C16

ANACHIP:
AM24LC01,AM24LC02,AM24LC04,AM24LC08,AM24LC16

ROHM:
BR24C01,BR24LC01,BR24C02,BR24LC02,BR24C04,BR24LC04,BR24C08,BR24LC08,BR24C16,BR24LC16,BR24C32,BR24LC32,
BR24C64,BR24LC64

EOREX:
EM24LC01,EM24LC02,EM24LC04

RAMTRON:EEPROM
FM24CL04,FM24CL04A,FM24C08A,FM24CL16,FM24CL64,FM24C64A,FM24C256

NSC :
NM24C02,NM24C04,NM24C08,NM24C64

ISSI:
IS24C01,IS24C02,IS24C04,IS24C08,IS24C16,IS24C32,IS24C64,IS24C128,IS24C256,IS24C512,IS24C1024

HOLTEK:
HT24C01,HT24C02,HT24C04,HT24C08,HT24C16,HT24C32,HT24C64,HT24C128,HT24C256 ,HT24C512,HT24C1024,
HT24LC01,HT24LC02,HT24LC04,HT24LC08,HT24LC16,HT24LC32,HT24LC64,HT24LC128,HT24LC256,HT24LC512,HT24LC1024,

FAIRCHILD:EEPROM
FM24C01L,FM24C02L,FM24C03L,FM24C04L,FM24C05L,FM24C08L,FM24C9L,FM24C16L,FM24C17L,FM24C32L,
FM24C64L,FM24C128L,FM24C256L,FM24C512L,FM24C1024L

KATALYSATOR:
CAT24C00,CAT24C01,CAT24C02,CAT24C21,CAT24C04,CAT24C08,CAT24C16,CAT24C32,CAT24C64,CAT24C128,
CAT24C2566,CAT24FC01,CAT24FC02,CAT24FC04,CAT24FC08,CAT24FC16,CAT24FC32,CAT24FC64,CAT24FC128,CAT24FC256 ,
CAT24LC02,CAT24LC04,CAT24LC08,CAT24LC16,CAT24LC32,CAT24LC64

HUAHONG:
K24C02,K24C04,K24C08,K24C16,K24C32,K24C64

HUAJIE:
K24C02,K24C04,K24C08,K24C16,K24C****,K24C

**** ******** 93 EEPROM **************************************** *****

AT93C46(16bit), AT93C46(8bit),
AT93C46A, AT93C56(16bit), AT93C56(8bit),AT93C57(16bit),
AT93C57(8bit), AT93C66(16bit), AT93C66(8bit), AT93C86(16bit ),
AT93C86(8bit), AT93C76 @ 16bit

MICROCHIP:
93C46A,93C46B,93LC46A,93LC46B ,93C56A, 93C56B,93C56C(8b),93LC56A,93LC56B,
93LC56B,,93C66A,93C66A,93C66B,93C66C(8b),93LC66A,93LC66B,93C76A,93C76C(8b),93LC76A,
93LC76B,93C86A,93C86B,93LC86A,93LC86B,93LC86C(16b),93LC86C(8b)

ROHM:EEPROM
BR93LC46, BR93LC46,BR93LC56,BR93LC56,BR93LC66,BR93LC66

ST:
ST93C06(16b),ST93C06(46,M93S06,M93S06(84),M93C06(8b) 16b), ST93C46(8b), ST93C47(16b)
ST93C47(8b), M93S56, M93S56,ST93C56(16b), ST93C56(8b), ST93C57(16b), ST93C57(8b)
ST93S66,ST93C66(16b),ST93C66(8b ), ST93C67(16b), ST93C67(8b), ST93C86W(16b),
ST93C86W(8b)
ACE:
ACE93C46 @ 8bit,ACE93C46 @ 16bit,ACE93C56 @ 8bit,ACE93C56 @ 16bit,ACE93C66 @ 8bit,ACE93C66 @ 16bit

ANACHIP:
93C46 93C56,93C66

KATALYSATOR:
CAT93C46 @ 8bit,CAT93C56 @ 8bit,CAT93C57 @ 8bit,CAT93C66 @ 8bit,CAT93C86 @ 8bit,
CAT93C46 @ 16bit,CAT93C56 @ 16bit,CAT93C57 @ 16bit,CAT93C66 @ 16bit,CAT93C86 @ 16bit

ATC:
ATC93C46 @ 8bit,ATC93C46 @ 16bit ,ATC93C56 @ 8bit,ATC93C56 @ 16bit,ATC93C66 @ 8bit,ATC93C66 @ 16bit,
ATC93LC46 @ 8bit,ATC93LC46 @ 16bit

EOREX:
EM93LC46 @ 8bit,EM93LC46 @ 16bit,EM93LC56 @ 8bit,EM93LC56 @ 16bit,EM93LC66 @ 8bit,EM93LC66 @ 16bit,
EM93LC57 @ 8bit,EM93LC57 @ 16bit,EM93LC76 @ 8bit,EM93LC76 @ 16bit,EM93LC86 @ 8bit,EM93LC86 @ 16bit

ISSI:
IS93C46 @ 16bit,IS93C56 @ 8bit,IS93C56 @ 16bit,IS93C66 @ 8bit,IS93C56 @ 8bit,IS93C66 @ 8bit,IS97C66 @ 73C.IS99 16bit @ 16bit,
IS93C86 @ 8bit, IS93C86 @ 16bit

ICT:
ICT93C46 @ 8bit,ICT93C46 @ 16bit,ICT93C56 @ 8bit,ICT93C56 @ 16bit,ICT93C66 @ 8bit,ICT93C66 @ 16bit

HOLTEK:
HT93C46 @ 16bit,HT93C56 @ 16bit,HT93C66 @ 16bit,HT93LC46 @ 8bit,HT93LC46 @ 16bit,HT93LC56 @ 8bit,HT93LC56 @ 16bit,
HT93LC66 @ 8bit,HT93LC66 @ 16bit,HT93LC76 @ 8bit,HT93LC76 @ 16bit,HT93LC86 @ 8bit,HT93LC86 @ 16bit

FAIRCHILD:EEPROM
FM93C46,FM93C46A @ 8bit,FM93C46A @ 16bit,FM93C56,FM93C56A @ 8bit,FM93C56A @ 16bit,FM93C66, FM93C66A @ 8bit,
FM93C66A @ 16bit,FM93C76,FM93C76A @ 8bit,FM93C76A @ 16bit,FM93C86,FM93C86A @ 8bit,FM93C86A @ 16bit,
FM93S46,FM93S56,FM93S66

EXEL:
XL93C46,XL93CS46,XL93LC46,XL93C56,XL93CS56,XL93LC56,XL93C66,XL93CS66 ,XL93LC66,
XLS93C46,XLS93C56,XLS93C66

COMMON:
93C46@8bit,93C46@16bit,93C56@8bit,93C56@16bit,93C66@8bit,93C66@16bit,93C76@8bit,93C76@16bit,
93C86@8bit,93C86@16bit

AKM:EEPROM
AK93C45@8bit,93C86@16bit.AK5,AK5,AK5,AK93C45 YMC: Y93LC46 @ 8bit,Y93LC46 @ 16bit,Y93LC56 @ 8bit,Y93LC46 @ 16bit,Y93LC56 @ 8bit,6 @Y93LC65bit @93LC65bit @
93LC65bit 8bit, y93LC66 @ 16bit, Y93LC76 @ 8bit,Y93LC76 @ 16bit,Y93LC86 @ 8bit,Y93LC86 @ 16bit RATO: RT93C46,RT93LC46 @ 8bit,RT93LC46 @ 16bit NSC: NM93C46 @ 8bit,NM93C46 @ 16bit,NM93C56 @ 8bit,NM93C56 @ 16bit, NM93C66 @ 8bit, NM93C66 @ 16bit, NM93C76 @ 8bit, NM93C76 @ 16bit, NM93C86 @ 8bit, NM93C86 @ 16bit SEIKO:
